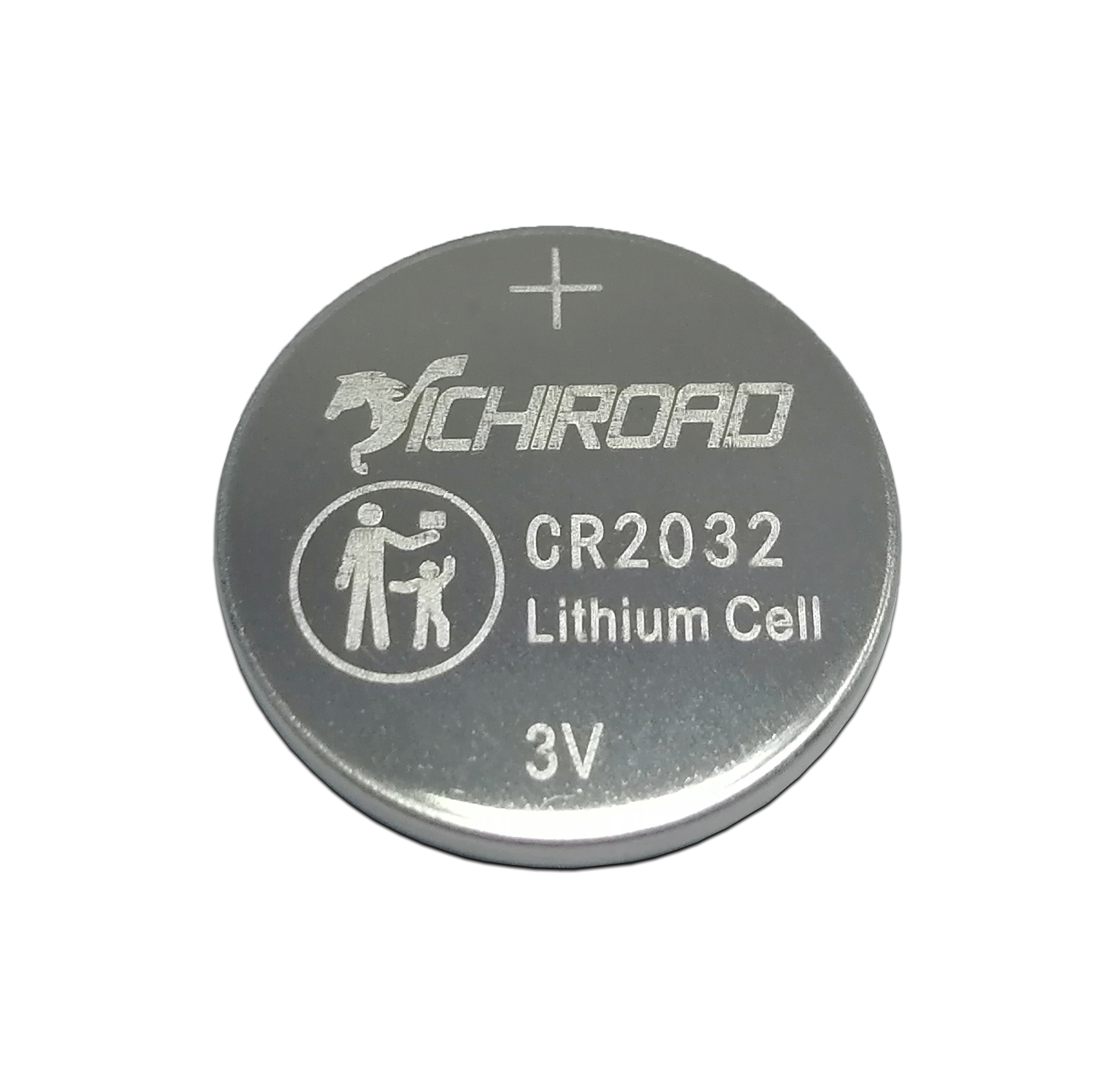

CR2032/1GVF
Model： CR2032/1GVF
brand：YICHIROAD
Voltage(V)：3
capacity(mAh)：
size(mm)：20*3.2
Texture of material： Li-MnO2 button cell
Adaptable products：
working temperature range：-20℃~+60℃
Product introduction
Item | Model | Nominal(V) | Dimensions (mm) | Discharge Characteristics(23℃) | Weight (g) | |||
| Nominal Capacity (mAh) | Standard Current (mA) | Continuous Current (Max)(mA) | Max Pulse Current (mA) | |||||
| 01 | CR927 | 3.0 | 9.5*2.7 | 26 | 0.1 | 1.0 | 5.0 | 0.6 |
| 02 | CR1025 | 3.0 | 10.0*2.5 | 28 | 0.1 | 1.0 | 5.0 | 0.7 |
| 03 | CR1130 | 3.0 | 11.5*3.0 | 30 | 0.1 | 1.0 | 5.0 | 0.8 |
| 04 | CR1216 | 3.0 | 12.5*1.6 | 25 | 0.1 | 1.0 | 5.0 | 0.6 |
| 05 | CR1220 | 3.0 | 12.5*2.0 | 30 | 0.1 | 1.0 | 5.0 | 0.7 |
| 06 | CR1225 | 3.0 | 12.5*2.5 | 40 | 0.1 | 1.0 | 5.0 | 0.9 |
| 07 | CR1616 | 3.0 | 16.0*1.6 | 45 | 0.1 | 2.0 | 8.0 | 1.0 |
| 08 | CR1620 | 3.0 | 16.0*2.0 | 60 | 0.1 | 2.0 | 8.0 | 1.2 |
| 09 | CR1632 | 3.0 | 16.0*3.2 | 110 | 0.2 | 2.0 | 10.0 | 1.7 |
| 10 | CR2016 | 3.0 | 20.0*1.6 | 75 | 0.2 | 2.0 | 15.0 | 1.6 |
| 11 | CR2025 | 3.0 | 20.0*2.5 | 150 | 0.4 | 3.0 | 18.0 | 2.5 |
| 12 | CR2032 | 3.0 | 20.0*3.2 | 230 | 0.4 | 3.0 | 20.0 | 3.1 |
| 13 | CR2050 | 3.0 | 20.0*5.0 | 360 | 0.4 | 3.0 | 20.0 | 4.2 |
| 14 | CR2330 | 3.0 | 23.0*3.0 | 250 | 0.4 | 3.0 | 20.0 | 4.0 |
| 15 | CR2335 | 3.0 | 23.0*3.5 | 300 | 0.4 | 3.0 | 20.0 | 4.2 |
| 16 | CR2354 | 3.0 | 23.0*5.4 | 550 | 0.4 | 3.0 | 20.0 | 6.3 |
| 17 | CR2430 | 3.0 | 24.5*3.0 | 300 | 0.4 | 3.0 | 20.0 | 4.2 |
| 18 | CR2450 | 3.0 | 24.5*5.0 | 600 | 0.4 | 3.0 | 20.0 | 6.3 |
| 19 | CR2450 | 3.0 | 24.5*5.0 | 680 | 0.4 | 3.0 | 20.0 | 6.8 |
| 20 | CR2477 | 3.0 | 24.5*7.7 | 1000 | 0.4 | 3.0 | 20.0 | 10.0 |
| 21 | CR3032 | 3.0 | 30.0*3.2 | 500 | 0.4 | 3.0 | 20.0 | 6.7 |
BR1220/1FC BR1220-1FCE BR1220-1HEE BR1220/1HF BR1220-1HFE BR1220-1VCE BR-1225/H9A BR-1225/F1A BR-1225/H9AE BR-1225/F1AE BR-1225-1HC BR-1225/H1A BR1225-1HCE BR-1225/H1AE BR1225/1VC BR1225/1HB BR1225-1VCE BR1225-1HBE BR-1632/1HF BR-1632/1HE BR-1632/1HFE BR-1632/V1AE BR-1632/V1A BR2032/1F4 BR2032/1F2 BR-2032/1F4E BR2032-1F2E BR-2032/1HE BR2032/1HS BR2032-1HEE BR2032-1HSE BR-2032-1HF BR2032/1GS BR2032-1HFE BR2032-1GSE BR2032/1HF1 BR2032/1GUF BR2032-1HF1E BR2032/1GUFE BR2032/1GU BR-2032-1VC BR2032-1GUE BR2032/1GU6E BR2032/1VC1 BR2032/1GVF BR2032-1VC1E BR2032-1VBE BR-2032/1VS1 BR2032-1VCE BR2032-1GVE BR2032/1GVFE BR-2325-1VC BR2325-1HGE BR2325-1VCE BR-2325-1VG BR2325-1VGE BR2330/1HE BR2330/1F3 BR2330-1HEE BR2330-1F3E BR-2330-1HF BR-2330/1HE1 BR2330-1HFE BR2330-1GUE BR2330/1HH BR2330/1GU BR2330-1HHE BR2330/1GUFE BR2330/1GVF BR2330/1GUF BR2330-1GVFE BR-2330/1VBE BR2330-1VC BR2330-1VCE BR-2330-1VC BR2330-1VC1E BR2330/1VC1 BR2330-1GVE BR-2330/1GV BR3032/1F2 BR3032/1HM BR3032-1F2E BR3032-1HME BR3032/1VC BR3032-1F4E BR-3032/1VCE BR-1225A/HB BR-1225A/FA BR-1225A/HBE BR-1225A/FAE BR1225A BR-1225A/HAE BR-1632A/FA BR-1632A/VA BR-1632A/FAE BR-1632A/HBE BR1632A BR-1632AHA BR-1632A/HAE BR-1632A/VAE BR-2330A/FA BR-2330A/HG BR-2330A/FAE BR-2330A/HDE BR-2330A/HD BR-2330A/HCE BR-2330A/HBE BR-2330A/HA BR-2330A/GAE BR2330A BR-2330A/GC BR-2330A/GCE BR-2330A/VA BR-2330A/VAE BR-2330A/GD BR-2330A/GG BR-2450A/FA BR-2450A/GBE BR-2450A/FAE BR-2450A/HA BR-2450A/HAE BR2450A BR-2450A/GGE BR-2450A/VAE BR-2477A/FB BR-2477A/FBE BR-2477A/HB BR-2477A/HCE BR2477A BR-2477A/GA BR-2477A/HBE BR-2477A/VA BR-2477A/GAE BR-2477A/VAE CR1216 CR-1216/1F5U CR1220/1FC CR1220/1HE CR1220-1FCE CR1220-1HEE CR1220 CR1220/1HF CR1220-1HFE CR1220/1VC CR1220-1VCE CR1620 CR-1620/F9A CR-1620/F9AE CR1632/1F2 CR-1632/1HE CR-1632/1F2E CR1632-1HEE CR1632 CR-1632/1HF CR-1632/V1AE CR-1632/1HFE CR-1632/V1A CR2016/1F2 CR2016-1F2E CR2016 CR-2016/1F4E CR-2025/1HF CR-2025/1HFE CR2025 CR-2025/V1A CR-2032-1HF CR2032/1F2 CR2032-1HFE CR2032-1F2E CR-2032-1HF CR2032/1F4 CR2032-1HF1E CR2032-1F4E CR2032/1HF1 CR2032/1HE CR2032-1HSE CR2032-1HEE CR2032/1HF1 CR-2032/H1G CR-2032/H1HE CR2032-1GSE CR-2032-1HS CR2032/1GS CR2032-1GUE CR2032 CR2032-1GUFE CR-2032/1GUF CR2032/1GU CR-2032/1VCE CR-2032/1VBE CR2032/1VC CR2032/1VS1 CR2032-1VCE CR2032/1VS1E CR-2032-1VC CR2032/1GV CR2032-1VC1E CR2032-1GVE CR2032/1VC1 CR2032/1GVF CR2032-1GVFE CR-2032/G5A CR2330/1HF CR2330/1F3 CR2330-1HFE CR2330-1F3E CR2330/1HF CR-2330/1F4C CR2330/1F4CE CR-2330/F1A CR-2330/F1AE CR2330/1HH CR2330 CR2330-1GUE CR2330/1GU CR2330-1GUFE CR2330/1GUF CR2330-1VCE CR-2330/1VC CR2330/1GVFE CR2330/1GVF CR2354/1F2 CR2354/1GU CR2354-1F2E CR2354-1GUE CR2354/1HE CR2354-1HEE CR2354/1HF CR2354-1HFE CR2354 CR-2354/H3A CR-2354/1HME CR2354/1HE1 CR2354-1GUFE CR2354/1HM CR2354-1VCE CR2354/1GUF CR2354/1VC CR2450 CR-2450/H9A CR-2450/G1A CR-2450/H1AE CR-2450/G1AE CR-2450/H1A CR-2450/G1B CR-2450/V1AE CR-2450/G1BE CR-2450/V1A CR-2450/V9A CR2477/1HF CR2477/1F2 CR2477-1HFE CR-2477/1F2E CR2477 CR2477/1VC CR2477/1HE CR2477-1VCE CR2477-1HEE CR2477/1HF1 CR2477/1HF1E CR3032/1F2 CR3032-1F2E CR3032 CR-3032/1F4 CR-3032/1F4E CR3032/1VC CR-3032/1VCE VL621 VL-621/F9D VL-621/F9DE VL1220/1FC VL-1220/F3A VL1220-1FCE VL-1220/1HEE VL1220 VL1220/1HF VL-1220/1HF1 VL1220-1HFE VL1220/1HF1E VL1220/1VC VL1220-1VCE VL2020/1F2 VL-2020/F1B VL-2020/1F2E VL2020 VL-2020/F1A VL-2020/H1C VL2020-1HFE VL2020/1HF VL-2020/V3A VL2020-1VCE VL2020/1VC VL2320/1F2 VL2320 VL2320/1HF VL2320-1HFE VL2320-1F2E VL2320/1VC VL2320/1HM VL2320-1VCE VL2330/1HF VL2330/1F3 VL2330-1HFE VL-2330/1F3E VL-2330/G1A VL-2330/G1BE VL2330 VL2330/1VC VL-2330/G1AE VL-2330/G1C VL2330-1VCE VL-2330/G1CE VL3032/1F2 VL3032/1VC VL3032-1F2E VL3032-1VCE VL3032 VL3032/1HF5 VL3032-1HF5E VL3032/1GUF VL3032-1GUFE ML414 ML-414S/F9D ML-414S/F9DE ML421 ML-421S/F9D ML614 ML-614S/F9D ML-614S/F9DE ML-614S/F9F ML-614S/F9FE ML621 ML-621S/F9D ML-621S/F9DE ML-920S/F9A ML-920S/F9DE ML920 ML-920S/F9D ML1220 ML-1220/F1B ML-1220/F1A ML-1220/F1BE ML-1220/F1AE ML-1220/V1A ML-1220/V1AE ML-1220/H1AE ML-2020/H1B ML-2020/F1A ML-2020/H1BE ML-2020/F1AE ML-2020/H1C ML-2020/H1CE ML-2020/V1A ML-2020/V1AE ML-2020/G1AE ML-414RM/F9J ML414RM/F9CE ML414RM/F9AE ML414RM ML-414RM/F9K ML-414RM/F9M CR1216FH CR1220FH CR1225FH CR1616FH CR1620FH CR1632FH CR1632FH1 CR2016FH CR2016FH1 CR2025FH CR2025FH1 CR2032FH CR2032FH0 CR2032FH1 CR2032FH2 CR2325FH CR2430FH CR2430FH1 CR2450NFH CR2477NFH CR2016RH CR2025RH CR2032RH CR2032RH1 CR2325RH CR2430RH CR2430RH1 CR2450NRH CR2450NRH1 CR2477NRH CR2025RV CR2032RV CR2325RV CR2430RV CR2450NRV CR2477NRV CR1025FV CR1220FV CR1225FV CR1616FV CR1620FV CR1632FV CR2032FV CR2320FV CR2325FV CR2430FV CR2450NFV CR2477NFV
Shenzhen Yichi Electronic Technology Co., Ltd., specializing in button battery (CR series, ML series, LIR Series), column type lithium battery (ER Series,ICR Series) button battery seat, battery processing welding feet, support OEM and other comprehensive battery manufacturing enterprises. The company has a strong technical research and development backing. In the production link, the company strictly controls the product quality according to the requirements and standards of ISO9001 international quality standard system. From the whole process of product R & D design, production to sales and after-sales service, a set of strict quality management and guarantee system has been established, and the products are strictly controlled. The timeliness and reliability of after-sales service.
In the past ten years, with the professional service technology team, the company has designed the battery solutions that meet the special needs for a large number of small and medium electronic products, such as medical instrument, USB thermometer, LED special battery, ultra-thin remote control current battery, notebook CMOS special battery, industrial control motherboard BOIS backup battery, 3D glasses Battery, RFID electronic label special ultra-thin battery, intelligent water cup, intelligent belt, Bluetooth beacon, welding mask and so on, and strive to become a professional supplier of lithium batteries for customers. "Devote every effort to achieve the extreme" is the core concept of the company. "Intelligent production, concentric" is the company's service concept. We will devote all our efforts to demand - oriented, research and development as the driving force and quality as the core, and continue to customize more customized battery solutions for customers.
